Quantum Signature

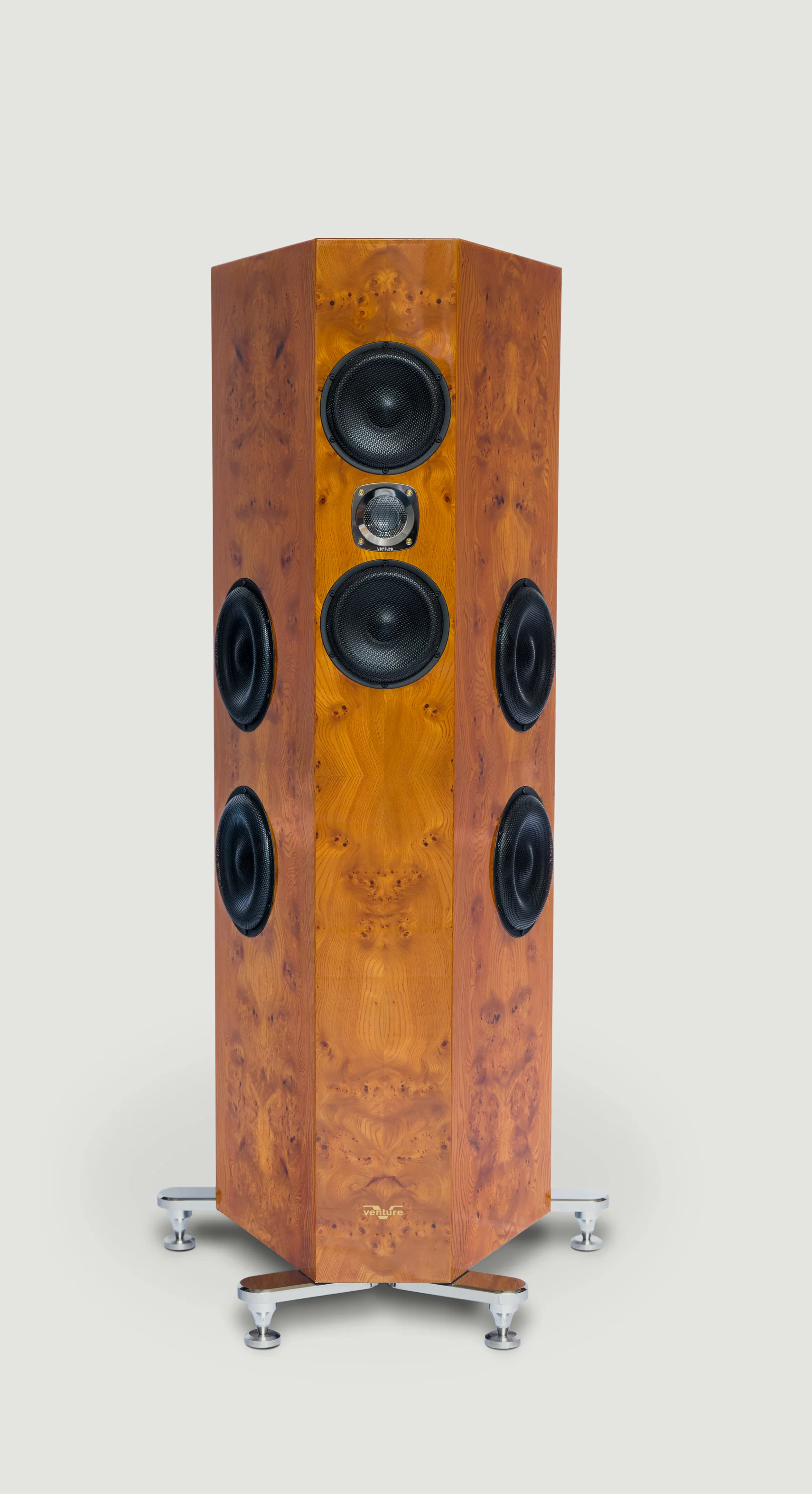

QUANTUM SIGNATURE was the second Active model in the Quantum Series to be launched and showcased at the High end shows in 2017. This speaker boasts new 8.5” woofers, 7” woofer midrange and a 32 mm Beryllium tweeter, all using our AGC cones. The QUANTUM SIGNATURE is a gorgeous speaker, equipped with the new Beryllium tweeter, two 6.5” AGC midrange and four 8.5” woofers.

The Quantum Signature presents an extremely high level of resolution revealing all the qualities of tones, vibrato of voices and instruments and the tiniest levels of sibilance. The drivers are so fast that dynamic range is developed to the maximum levels of recording.

Individual images have their own dynamic range, a phenomenon that is virtually unheard of. The noise floor is inaudible and the sound stage is wide and deep with highly focused images.

Cabinet

Our beautiful Quantum speaker cabinet utilizes different material bonded together, all of which resonate at different frequencies and is finished with 1.3 mm thick, hand polished, mirror high gloss finish polyester lacquer, eliminating cabinet coloration.

Finishing

The Quantum series come in a variety of Premium veneer of Black Polyester, Sapele Pomele and the luxury Elm Burl.

Specifications

• Design Principle: 3-Way Digitally controlled Active Speaker

• DSP: SHARC DSP @300MHz

• Frequency Response: 20 - 40,000 Hz / - 6 dB

• Maximum SPL: 123 dB / m

• Total Amplifier Power: 2500 Watts Class D

• Amplifier Channels: 3

• Analog Input: Balanced

• Digital Input: AES

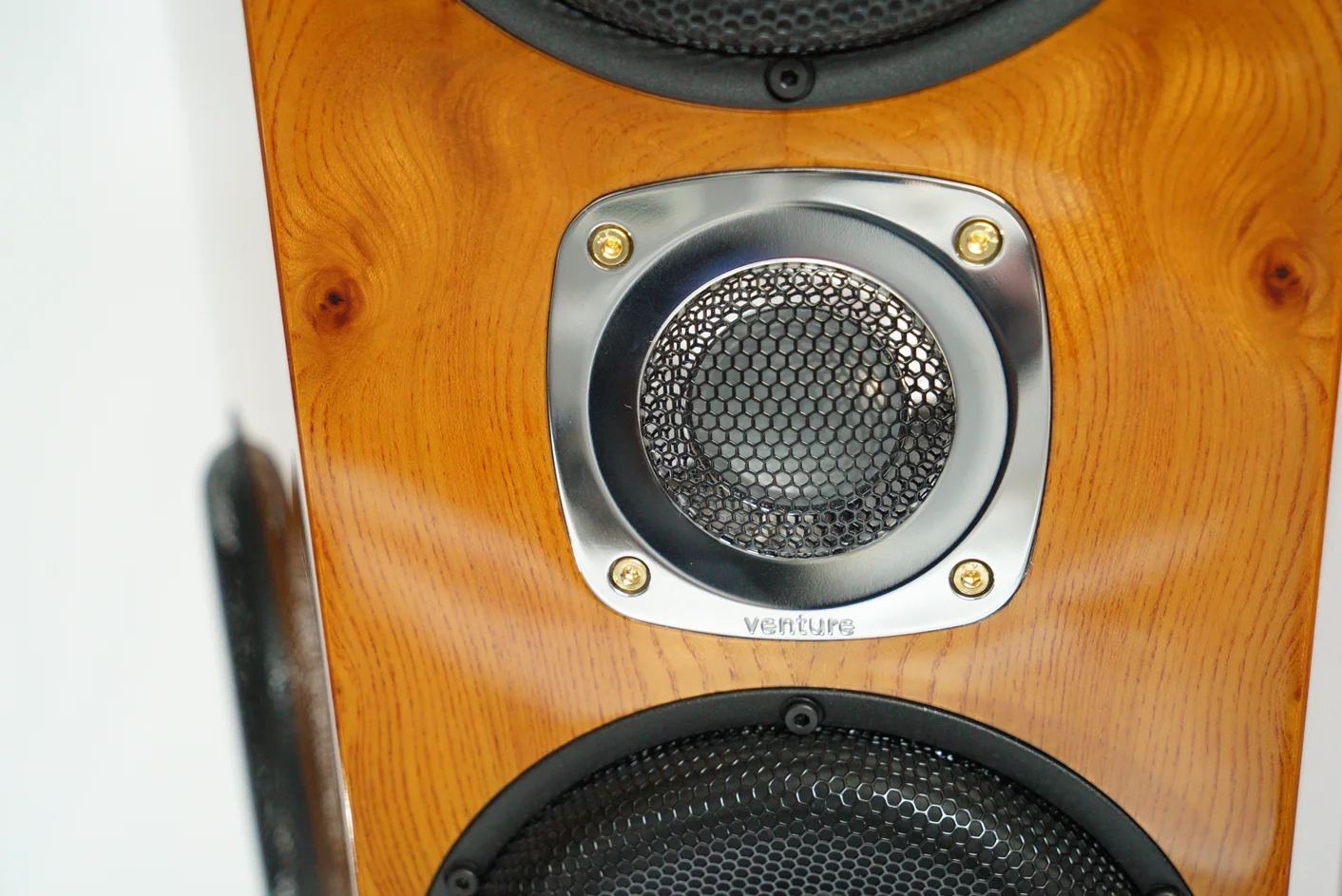

• Tweeter: One 32 mm Beryllium Tweeter

• Midrange: Two 6.5” AGC Midrange

• Woofer: Four 8.5” AGC Woofers

• Wiring: Venture cables

• Dimensions: H-157 x W-70 x D-65 cm / H-62 x W-28 x D-36 inches

• Weight: 90 kgs / 198 lbs

• Finish: Luxury Elm Burl High Gloss

*In keeping with our Live Performance Satisfaction Philosophy and to improve on and manufacture more effective products,Venture reserves the rights to change product specifications and materials without prior notice.
