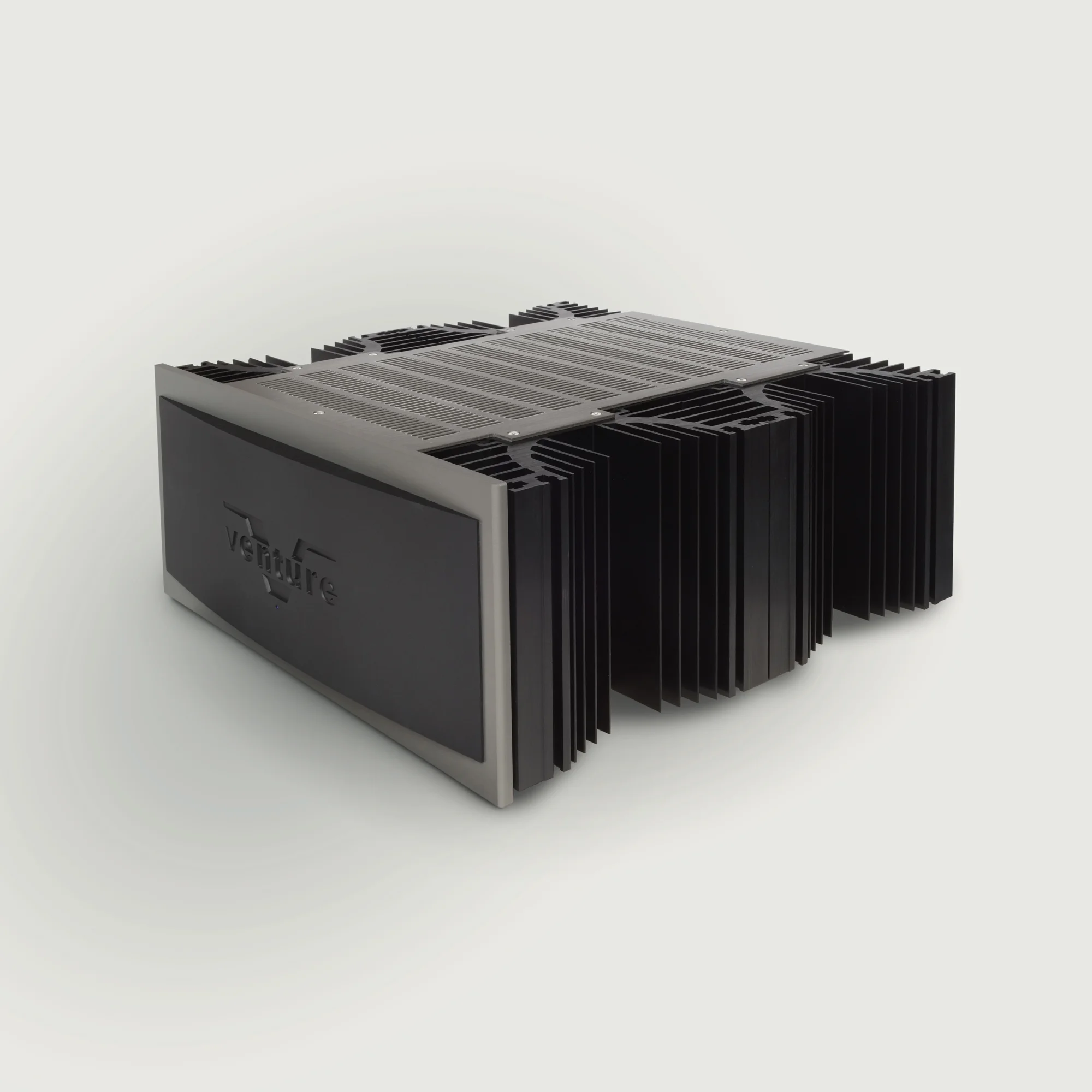

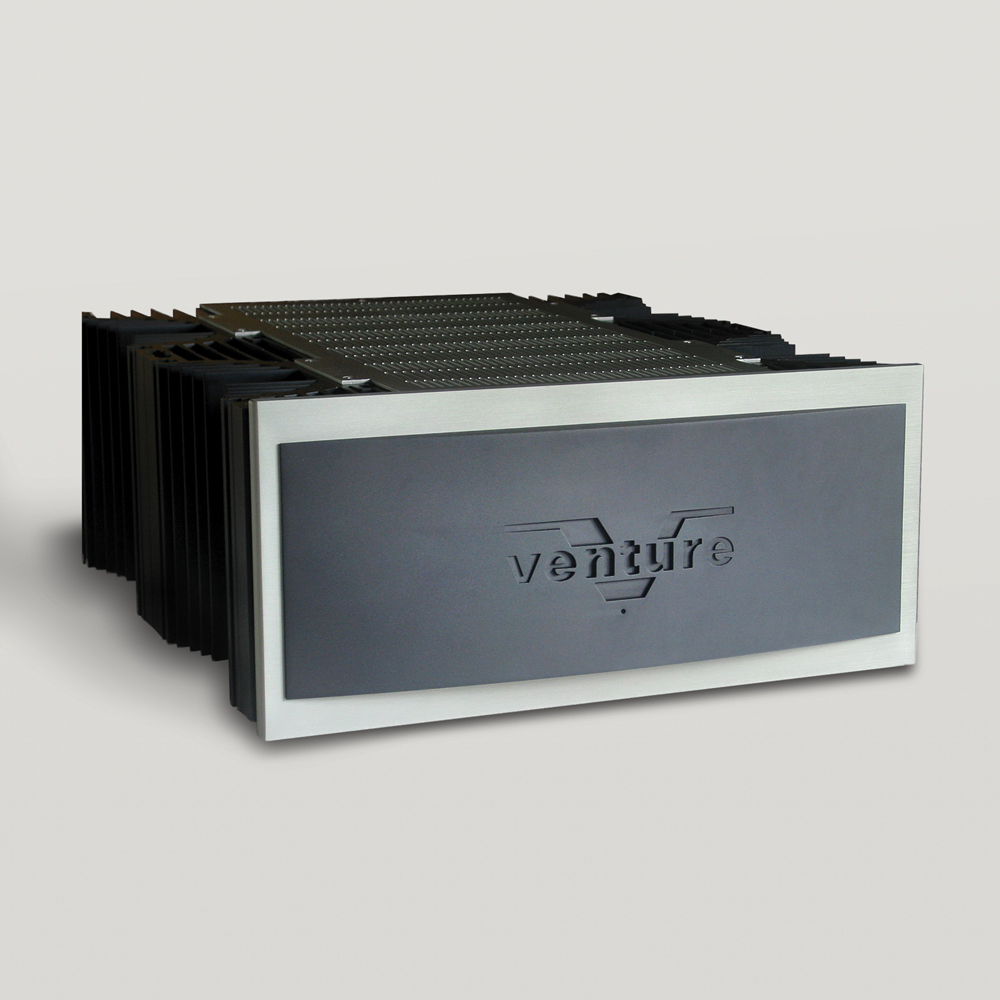

V200A+

With its Class A Mosfet design, the V200A+ ampli er offers an unleashed listening pleasure with an even more carnal sound. Its transparency and dynamics are set far beyond common levels and therefore the V200A+ are capable to drive any loudspeaker.

The multiple and independent powersupplies of the V200A+ have been equipped with Mundorf capacitors and Jensen special 4 pole capacitors, giving a great stereo image stability, while empowering impressive dynamics and generating improvements in micro-dynamics and harmonics. This makes the V200A+ especially suitable to the high-end systems for a Live Performance.




There is no total feedback resulting in more musicality and linearity. The impact is obvious and immediate to the sound: the bass is accurate with expected nuances and subtlety, with a good and rm damping factor.

The large size of the heat radiators keeps the temperature constant for the Mosfets, not exceeding 55o C. This provides the Mosfets a longer durability as they have a lineair behaviour and better sound quality. It operates in full class A until 200W (over 8 Ohms), which provides incomparable matter to the sound, giving a deep and rm bass and very smooth and airy medium-treble registers.

The VP100L or VP200D preamplifier is able to put the V200A+ in normal or stand-by position with the remote control or manually with the switch, gaining immediate access to its highest level of musicality, with a short warm up time of 15 minutes instead of the usual 4 hours needed to reach the operating temperature.



Specifications

  • Type: Class A Mosfet Power Amplifier

  • Nominal Power: 200 W Class A/ 8 Ohms

  • Intermodulation Distortion: <0.05%

  • Input Impedance: 22K Ohms

  • Harmonic Distortion: <0.05%

  • Signal-to-noise ratio: >110 dB

  • Damping Factor: 400

  • Input connections: 1 XLR Input 1 RCA Input

  • Output connections: 4 mm banana & speakon

  • Power Bandwidth: 1 - 100,000 Hz

  • Rise Time: <2.5 us

  • Dimensions: 520 x 490 x 200 mm

  • Weight: 40 kgs / 88 lbs

*In keeping with our Live Performance Satisfaction Philosophy and to improve on and manufacture more effective products,Venture reserves the rights to change product specifications and materials without prior notice.
